Eclairage ATEX Gamme ATEX

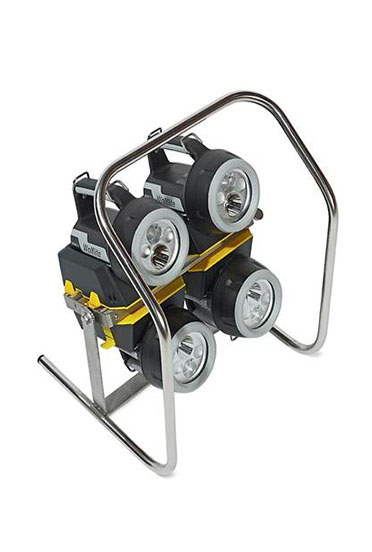

PROJECTEUR WOLFLITE PORTATIF ATEX XT-404

Type: ATEX

Zone: 1-2-21-22

Marking: II 2GD Ex de IIB+H2 T5/T6

II 2D Ex tb IIIC 100°C/85°C Db

Power: 400 W

Lumen: 46145 lm

Poids: 32.40 kg

Execution: Ex de, Ex db eb op is, Ex tb

IP Grade: IP66

Material: Aluminum

Standard power supply: 120-277V 50Hz

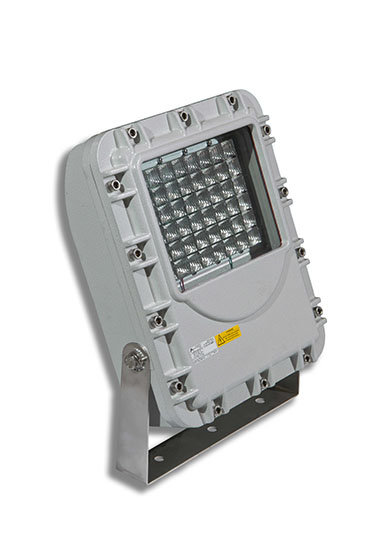

PROJECTEUR ATEX CORTEM IP65 - SLED-400 194W

ATEX

II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T85º C Db

ATEX ZONE 1 | M1 | M2

Ingress protection: IP 67

Measures: 100 x 60 x 67 mm

Burning time: 12 h

Emergency light: Up to 18 h

Lighting source: High Intensity LED

Main light: 3W

Auxiliary light: 1W

135 LUMENS

1600 CD

80 M

PROJECTEUR ATEX CORTEM IP65 - SLED-250 -122W

Type: ATEX

Marking: II 2GD Ex de IIB+H2 T5/T6

II 2D Ex tb IIIC 100°C/85°C Db

Power: 122W

Lumen: 12387 lm

Poids: 13.50 kg

Execution: Ex de, Ex db eb op is, Ex tb

IP Grade: IP66

Zone: 1-2-21-22

Material: Aluminum

Standard power supply: 120-277V 50Hz

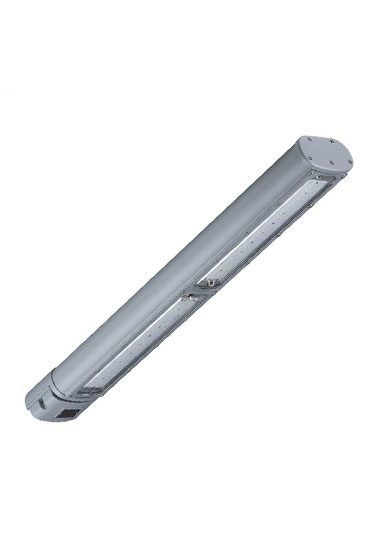

Luminaire RAYTEC ATEX - WARRIOR SPI Linear SPI-WL168

• Zone 1 & 2 variants available

used traditional 2x36W fluorescent luminaires

High lumen output – up to 6,800 lumens

Burning position: Universal

IP rating: IP66 & IP67

Temperature range: -40°C to +60°C (-20°C to +50°C for emergency variants)

Weight: Standard - 9kg (19.8lbs), Emergency - 10kg (22lbs)

Enclosure: Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel

Unit Colour: White (RAL 9016), Emergency Cover - Red (RAL 3024)

Dimensions: 775 x 108 x 174mm (30.5 x 4.3 x 6.9”)

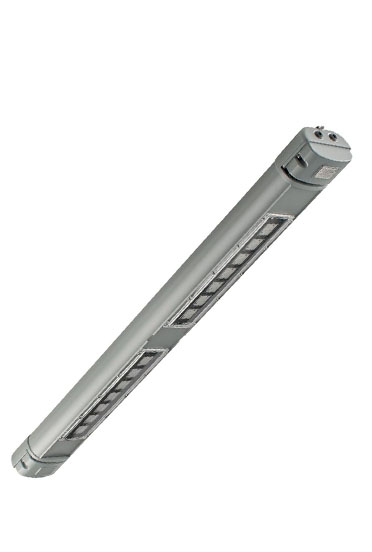

Luminaire RAYTEC ATEX ZONE 1 - SPARTAN SPX Linear

SPARTAN Linear WL168

Classification: Zone 1 (Gas), Zone 21 (Dust)

Certification: ATEX, IECEx and UKEX

Power: 49W

Gas: II 2 G D Ex eb mb IIC T4 Gb Ta= -40°C to +60°C

Dust: Ex tb IIIC T80°C Db Ta= -40°C to +60°C

LUMINAIRE LED PETREL ATEX XN Series Zone 2 & 22 60W Emergency LED

ATEX Classification – Ex nC II 3GD T4 -40°C to +55°C

Temperature Rating -20 to +51ºC

Certification Standards EN 60079-0-15-31

Certificate PET 14 ATEX TFXNX

Suitable Zoned Areas Zones 2 & 22

Gas Group Suitability II

Material Grp moulded body, polycarbonate diffuser – Aluminium control gear tray

Ingress Protection IP65

Cable Entries 2 x M20 – ISO (1 plugged) as standard

Electrical Connections 3 wire and earth.

Cable size: 4sqmm max – Through wiring versions available

Light Fitting Source High efficiency LED

Light Output Various ranging from 4,000lm-10,000lm

Supply Voltage 230V 50/60Hz

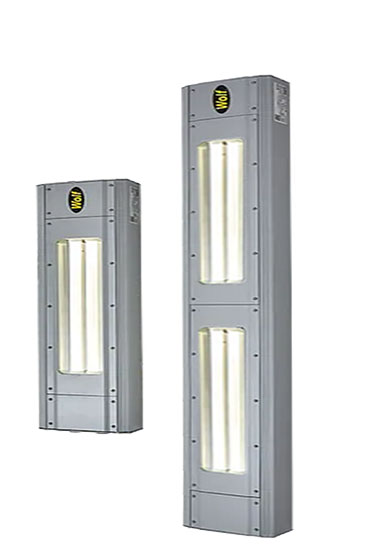

LUMINAIRE ATEX WOLFLITE F LMX4 LED - Zone 1 4ft 180-

PRODUCT REFERENCE: LX-400E (EMERGENCY)

MODEL: LMX4S-F-50

ENCLOSURE SIZE: 4ft

LUMEN OUTPUT (MAX): 5,258

GAS ZONE: 1 AND 2

DUST ZONE: 21 AND 22

POWER: LEAD

MODEL: 4FT, 46W, FFA, T80°C

CODE ATEX: II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T T80°C..90°C Db

FREQUENCY: 50 - 60 Hz

INPUT POWER (230V) (W): 46

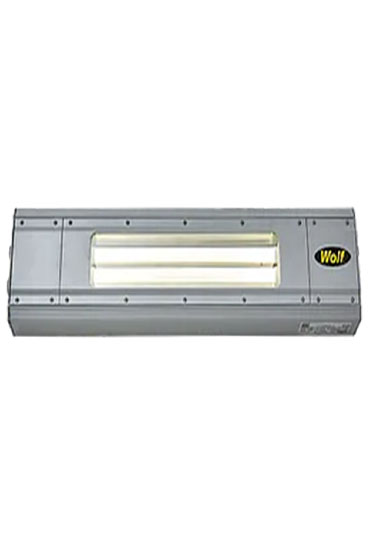

LUMINAIRE ATEX WOLFLITE 2F LMX2 LED - Zone 1 2ft

PRODUCT REFERENCE: LX-400E (EMERGENCY)

MODEL: LMX2S-F-50

ENCLOSURE SIZE: 2ft

LUMEN OUTPUT (MAX): 2,629

GAS ZONE: 1 AND 2

DUST ZONE: 21 AND 22

POWER: LEAD

MODEL: 2FT, 23W, FFA, T80°C

CODE ATEX: II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T T80°C..90°C Db

FREQUENCY: 50 - 60 Hz

INPUT POWER (230V) (W): 23

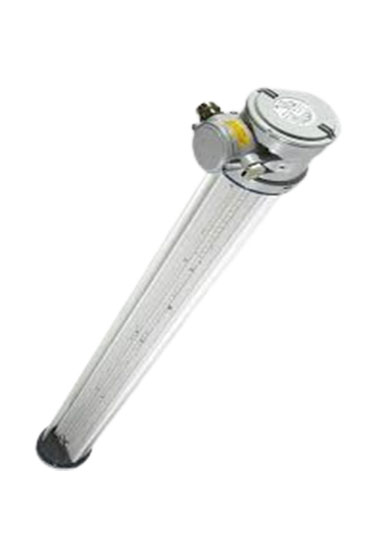

LUMINAIRE ATEX CORTEM LED FLFE

Execution: Ex db, Ex tb

IP Grade: 66

Zone ATEX: 1-2-21-22

Material: Aluminum

Power supply: 230V 50/60Hz

11-22-31W LED tubes

Type: ATEX

Marking: II 2GD Ex db op is IIC T6 Gb
